Manfactured not only in JIS, but also ASME&API standards, our casting valves are used in powerplants, petro and petrochemical plants worldwide from South East Asia to the Middle east and troughout other parts of the world.
We can provide a wide lineup of products from cast steel to special materials, large diameters and high pressure, suitable for various applications such as water, oil / steam and chemicals.

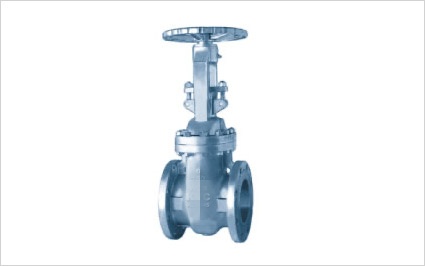

A valve, where the valve disc partitions the flow path. The fluid flow is in a straight line. Characterized by low pressure loss and fluid resistance, Gate Valves cannot be used at intermediate openings but only at full open or full closing postion.
We can provide a wide lineup of large valves over DN 1000A, high-pressure valves up to 4500Lb, actuator operation as well as bellows seal and water seal type..
| Model | Flexible Wedge Gate, Parallel Slide Gate, Through Conduit Gate |
|---|---|
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other |
| Pressure Class | JIS10K-63K, ANSI150Lb-2500Lb |
| End Connection | Butt Weld, Flange (FF, RF, RTJ) |
| Operation | Manual, Pneumatic, Hydraulic, Electric Motor |
| Size | 1/2″(15mm)-60″(1500mm) |

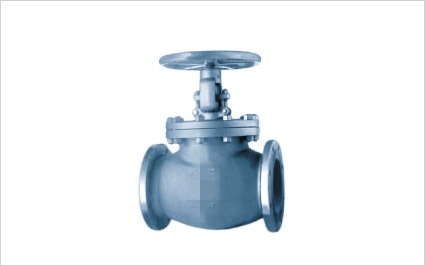

Due to the S-shaped fluid flow, the pressure loss is large, but the sealing property is high and it is excellent for adjusting the flow rate.
We can offer a wide lineup of high-pressure valves up to 4500Lb, in angle type, semi-needle type, bellows type and other also to be combined with various actuators.
| Model | Globe, Needle, Y-Globe & Other |
|---|---|
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other |
| Pressure Class | JIS10K-63K, ANSI150Lb-2500Lb |
| End Connection | Butt Weld, Flange (FF, RF, RTJ) |
| Operation | Manual, Pneumatic, Hydraulic, Electric Motor |
| Size | 1/2″(8mm)-28″(700mm) |

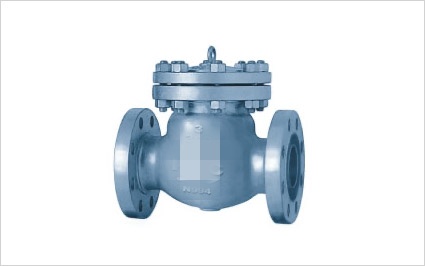

Check valves are constructed to automatically open the valve when the fluid tries to flow in the forward direction and close the valve when the fluid flows backward.
Mainly used as swing type, it is also possible to attach a counterweight to prevent water hammer. In addition, there are various types of check valves such as dual plate type, single plate type, tilting type, and lift type.
| Model | Swing Check & Other |
|---|---|
| Material | Carbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other |
| Pressure Class | JIS10K-63K, ANSI150Lb-2500Lb |
| End Connection | Butt Weld, Flange (FF, RF, RTJ) |
| Operation | ― |
| Size | 1/2″(8mm)-28″(700mm) |
