Utilizing more than 30 years of ball valve manufacturing experience,
providing high quality and diverse products

Since opening and closing operation is achived by 90° rotation, the operation time is short. The flow path is straight and the pressure loss is small.
Excellent airtightness is obtained and it is suitable for on / off operation.

Versatile and economic series

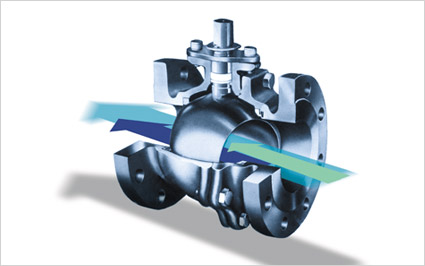

Metal Seat Ball Valve

It is a ball valve that can be used in harsh conditions for fluids that are difficult to handle with soft seats (e.g. (powder, slurry, high-viscosity fluid), with frequent opening and closing conditions and in high temperature service.
Depending on the fluid conditions, various hardening treatments can be applied to the seat and ball sliding parts to demonstrate excellent performance.
Standard permissible leakage from the seat is as per ANSI / FCI 70-2 Class V. Please contact us for more severe leaks.

PDF Download

Metal Seat Ball Valve Details

Model2-way ball valve, 3-way ball valve (L,T port)
MaterialCarbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other
Pressure ClassJIS10K-63K, ANSI150Lb-1500Lb
End ConnectionButt Weld, Flange (FF, RF, RTJ)
OperationManual, Pneumatic, Hydraulic, Electric Motor
Size1/4″(8mm)-36″(900mm)

The definitive version of a flanged ball valve

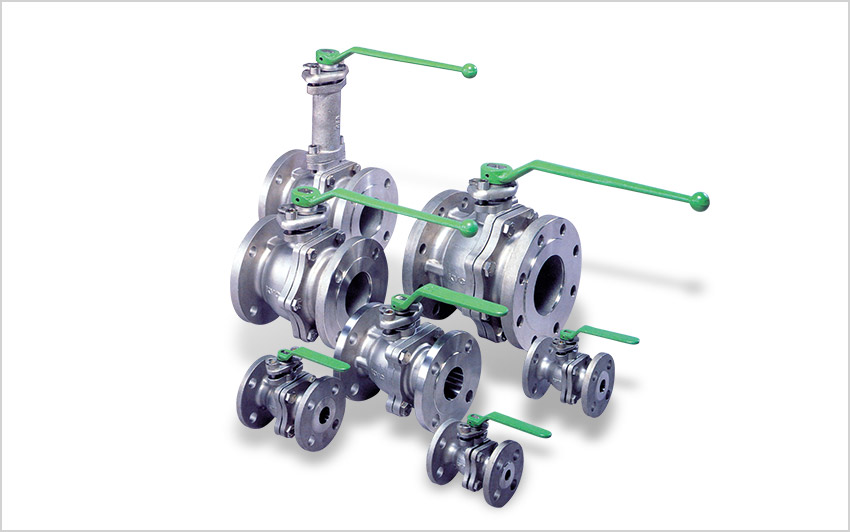

General Ball Valve (Soft Seated)

The seat material can be Teflon, nylon or peak and it can be selected widely according to the application. It is a valve that can be used for a wide range of applications other than general purpose such as water and gas. (e.g. steam, chemicals…)
Fire safe construction and antistatic mechanism can also be provided.

PDF Download

Soft Seated Ball Valve Details

Model2-way ball valve, 3-way ball valve (L,T port)
MaterialCarbon Steel, Stainless Steel, Alloy Steel, Hastelloy, Aluminium Bronze, Duplex Stainless Steel & Other
Pressure ClassJIS10K-63K, ANSI150Lb-2500Lb
End ConnectionButt Weld, Flange (FF, RF, RTJ)
OperationManual, Pneumatic, Hydraulic, Electric Motor
Size1/4″(8mm)-42″(1050mm)

Wide use in various piping and equipment

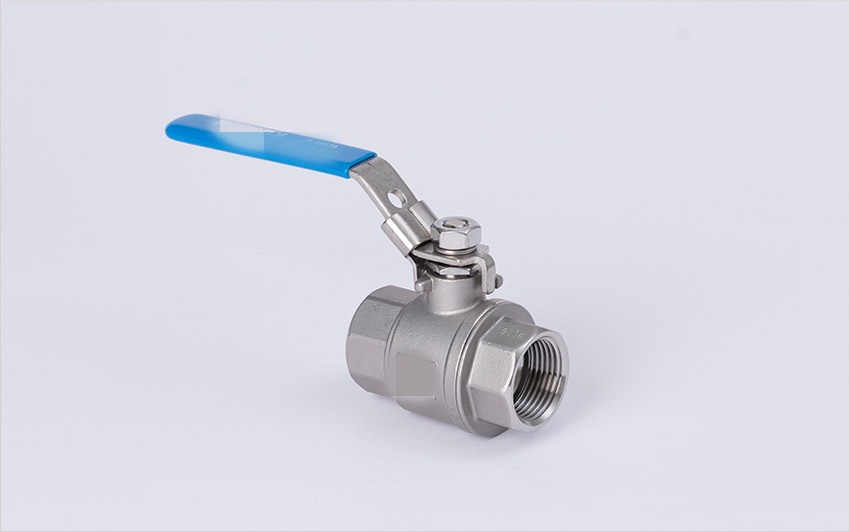

KUGEL-H® Kugel-H [Screw-in type, 2pc Body]

A screw-in type ball valve suitable for water, oil, and gas fluids.
Very robust type that can be used for to high pressure (up to 70 kg / cm2) at a low price. Equipped with a lock mechanism as standard.

PDF Download

Kugel-H Details

ModelSoft seat, 2 pc body
MaterialStainless Steel
Pressure ClassW.O.G.1000(70kg/cm2)
End ConnectionThreaded (PT, NPT)
OperationManual
Size1/4″ (50mm) ~ 4″ (100mm)

Screw-in or welded Ball Valve for serious conditions

KUGEL-H3® Kugel-H3 [Weld type, 3pc Body]

A ball valve with a 3-split structure suitable for water, oil, and gas fluids.
Robust type that can be used for high pressure (up to 70 kg / cm2) at a low price. Maintenance is easy because parts can be inspected while the valve is still installed in the piping. A lock mechanism can be equipped if necessary.

PDF Download

Kugel-H3 Details

ModelSoft seat, 3 pc body
MaterialStainless Steel
Pressure ClassW.O.G.1000(70kg/cm2)
End ConnectionSocket Weld, Butt weld
OperationManual
Size1/4″ (50mm) ~ 4″ (100mm)
