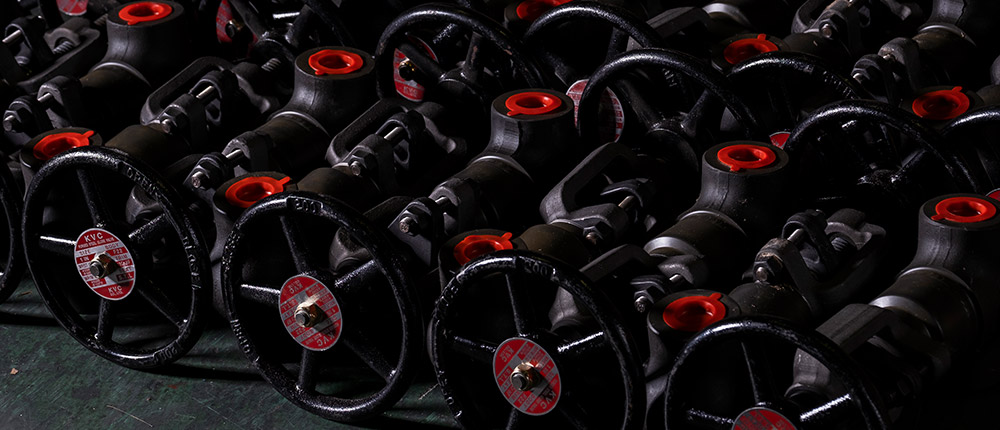

Our forged valves are used in various applications like compressors, pumps and other machinery in many plants worldwide.
Small lot production is possible and our lineup variation (welded ends, screwed ends, integral flanges, long bonnets, crogenic service…) is suited to meet all the customer needs.

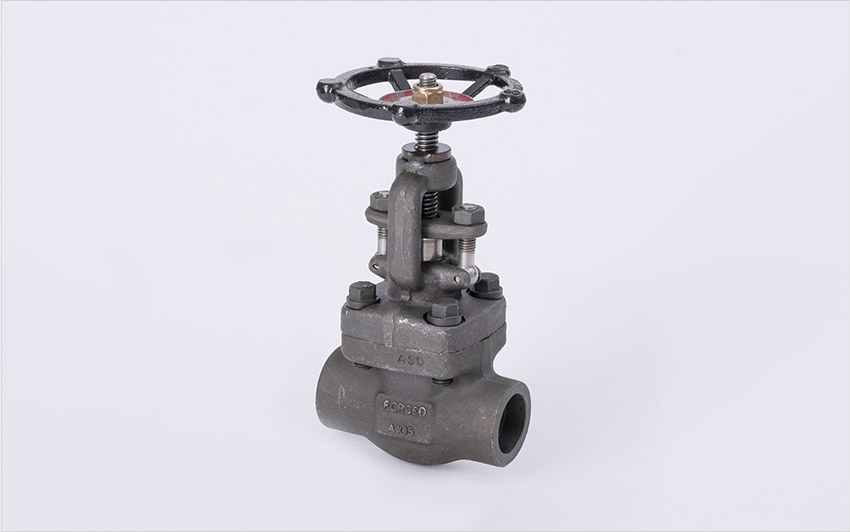

Gate Valves have low pressure loss and fluid resistance and are used for ON-OFF service. They can be used in high pressure services up to 4500Lb.
Special specification like cryogenic long bonnets, bellows seal or electric actuator operation make them suitable for mutilple purposes.
| Model | Gate |
|---|---|
| Material | Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel & Other |
| Pressure Class | JIS10K-63K, ANSI150Lb-4500Lb |
| End Connection | Socket Weld, Butt Weld, Thread (PT, NPT), Flange (FF, RF, RTJ) |
| Operation | Manual, Electric Motor |
| Size | 1/4″(8mm)-2″(50mm) |
Forged Globe Valves have excellent shut off properties and are suitable for fluid control as well. Needle valves provide even better flow rate adjustment.
High pressure service up to 4500 Lb, as well as long bonnet cryogenic service, bellows seal construction or electric actuation is supported.
| Model | Globe, Needle, Y-Globe, Angle Globe |
|---|---|
| Material | Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel & Other |
| Pressure Class | JIS10K-63K, ANSI150Lb-4500Lb |
| End Connection | Socket Weld, Butt Weld, Thread (PT, NPT), Flange (FF, RF, RTJ) |
| Operation | Manual, Electric Motor |
| Size | 1/4″(8mm)-2″(50mm) |

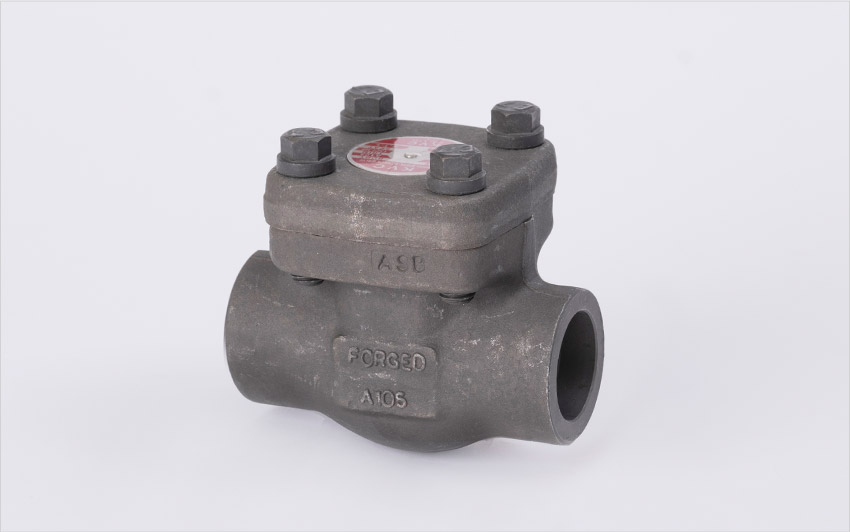

Check valve structure closes the valve when backflow occurs.
We can offer a wide lineup of swing type, lift type and ball check valve.
| Model | Lift Check, Swing Check, Ball Check |
|---|---|
| Material | Carbon Steel, Alloy Steel, Stainless Steel, Duplex Steel & Other |
| Pressure Class | JIS10K-63K, ANSI150Lb-4500Lb |
| End Connection | Socket Weld, Butt Weld, Thread (PT, NPT), Flange (FF, RF, RTJ) |
| Operation | – |
| Size | 1/4″(8mm)-2″(50mm) |
